How to setup a simulation using “Project” – Part 2

Back to blog

Project and analyses

In our previous tutorial, we demonstrated how to setup a project. We will continue with the same project and extend it with an additional analysis.

(Updated 20 April 2023)

Add new analysis

We start by opening up the project from the Welcome screen.

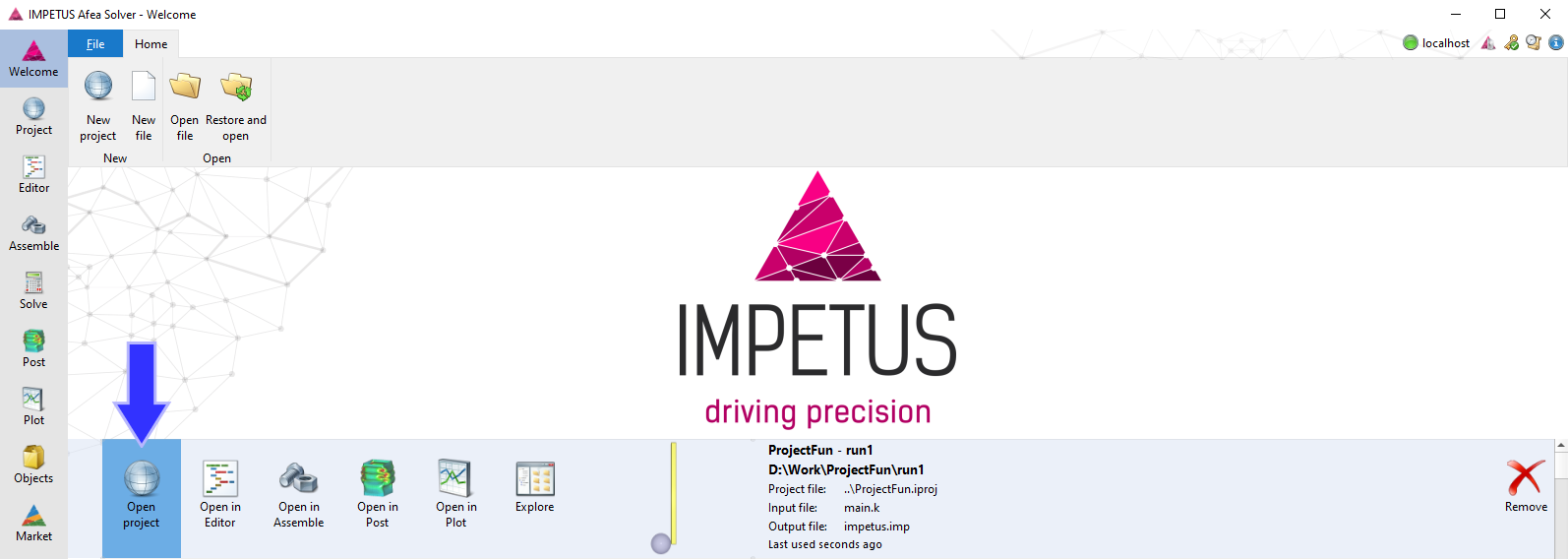

We can open the project from the Welcome screen

Adding a new analysis can be done by selecting the project name from the project window and then click the “New” button from the ribbon menu. This will let the user create a new analysis from scratch.

Another way to create a new analysis is to clone an existing one. By cloning, all input files from the source analysis will be copied to a new one. This can be useful for cases where we want to simulate something similar but with slightly different parameters.

We will focus on the latter and clone our existing analysis. Select the analysis run1 and then click the “Clone analysis” button from the ribbon menu. One can also right-click on run1 and then choose “Clone analysis”.

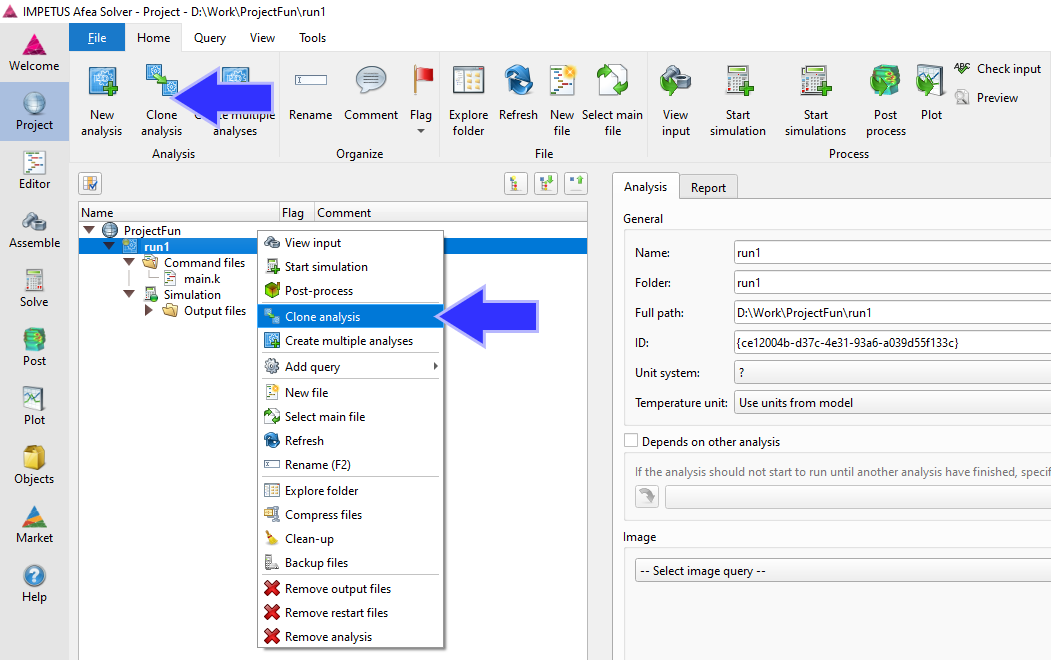

There are two ways to clone an analysis, either from the ribbon menu or from the context menu

A new dialog window will pop-up where we can name our cloned analysis. We will use the default name, run2 and proceed by clicking the “OK” button.

Adding comments

Depending on the names, it can sometimes be difficult to distinguish between analyses. One can either name the analyses with proper names and/or add helpful comments. To add a comment, select the analysis and then click the “Comment” button from the ribbon menu. One might have to resize the project window in order to see the comments. Comments can also be added to any other items in the project view. Just double-click on the “Comment” field in the project tree to add or modify the comment.

Adding comments can be helpful. Either by clicking on the Comment button or by double-clicking the comment field

Modify the cloned analysis

Lets change some parameters in our cloned analysis, run2. We start by clicking on the input file main.k, which will bring up the editor in the main window. We start by extending the termination time (parameter tend) to 0.05. By increasing the termination time, the simulation will take longer to complete. We will simplify the model a little by also reducing the polynomial order to 2. This will cut the simulation time.

*PARAMETER
tend      = 0.05 , "Termination time"
*CHANGE_P-ORDER
ALL, 0, 2

Start multiple simulations

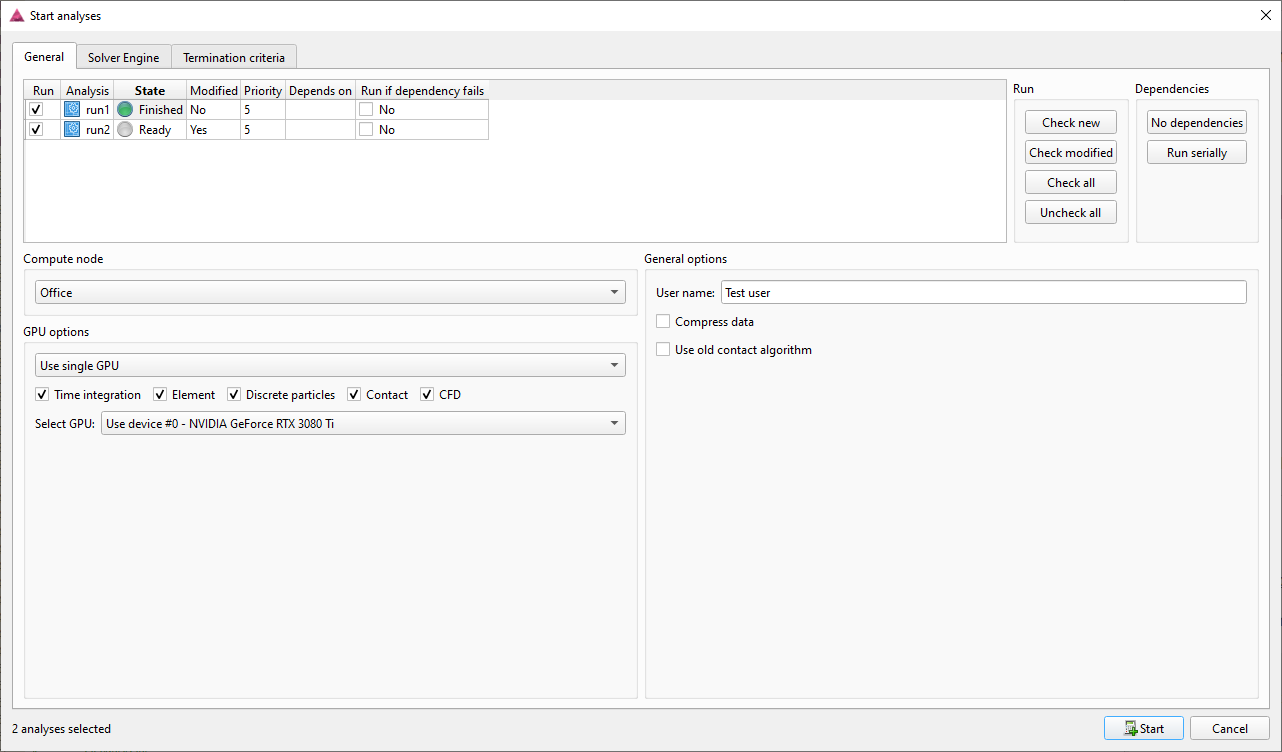

We can start multiple simulations now when we have multiple analyses. From the ribbon menu, click the “Start simulations” button and a new dialog window will pop-up. The options here are which simulations to execute as well as priority and dependency.

Conclusion

This is just a basic introduction to the creation and management of multiple analyses within a project. An animation of the extended simulation:
