Verification - Shaped charge and EFP template models

Verification - Shaped charge and EFP template models

This document presents verification tests for shaped charge and EFP models created using IMPETUS parametric templates. The models used for the tests are created using quarter, half and full symmetry. All of the models are created without changing any of the default settings in the templates.

Version control

The tests presented in this document are subjected to version control, meaning that the models are run and evaluated prior to release of a new solver. This document is updated in conjunction with new official releases of the software.

Shaped Charge

SC_initiation

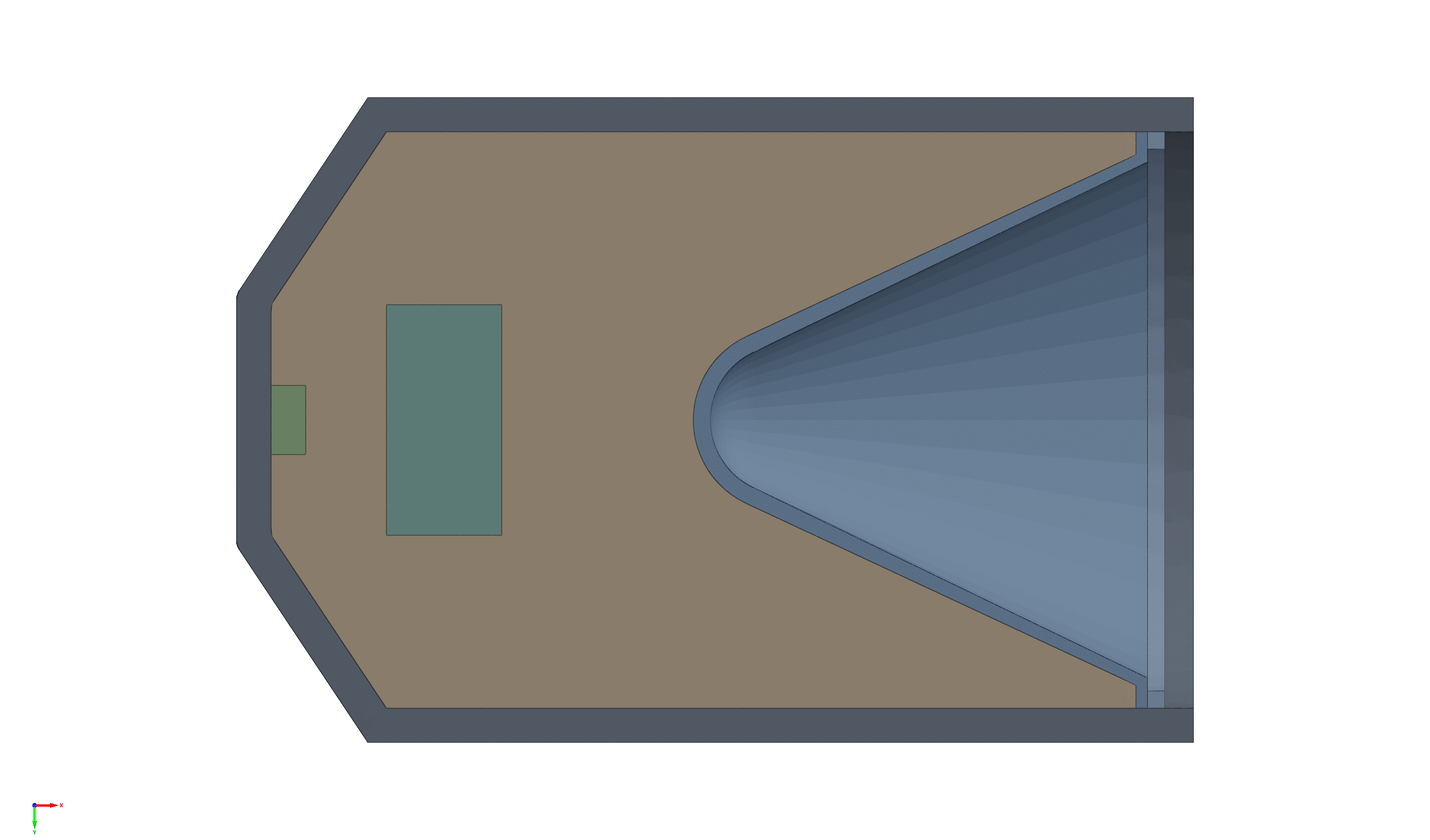

Figure 1. Shaped Charge at initiation, half symmetry.
SC_Full_symmetry

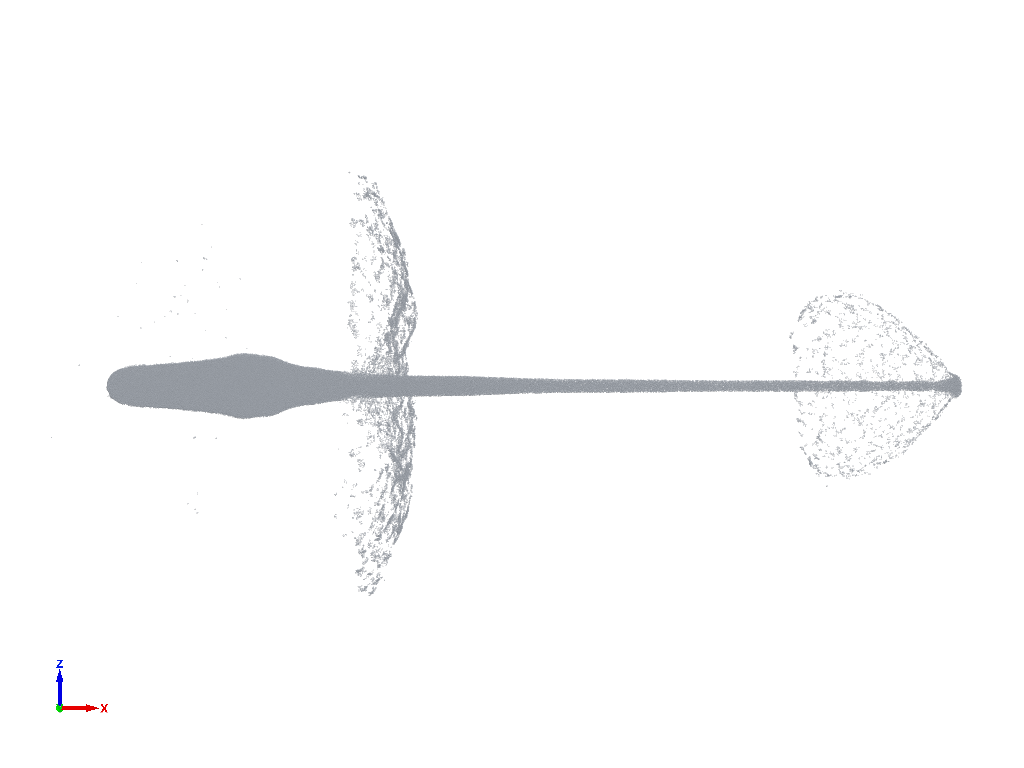

Figure 2. Shaped charge with full symmetry at final state.
SC_Half_symmetry

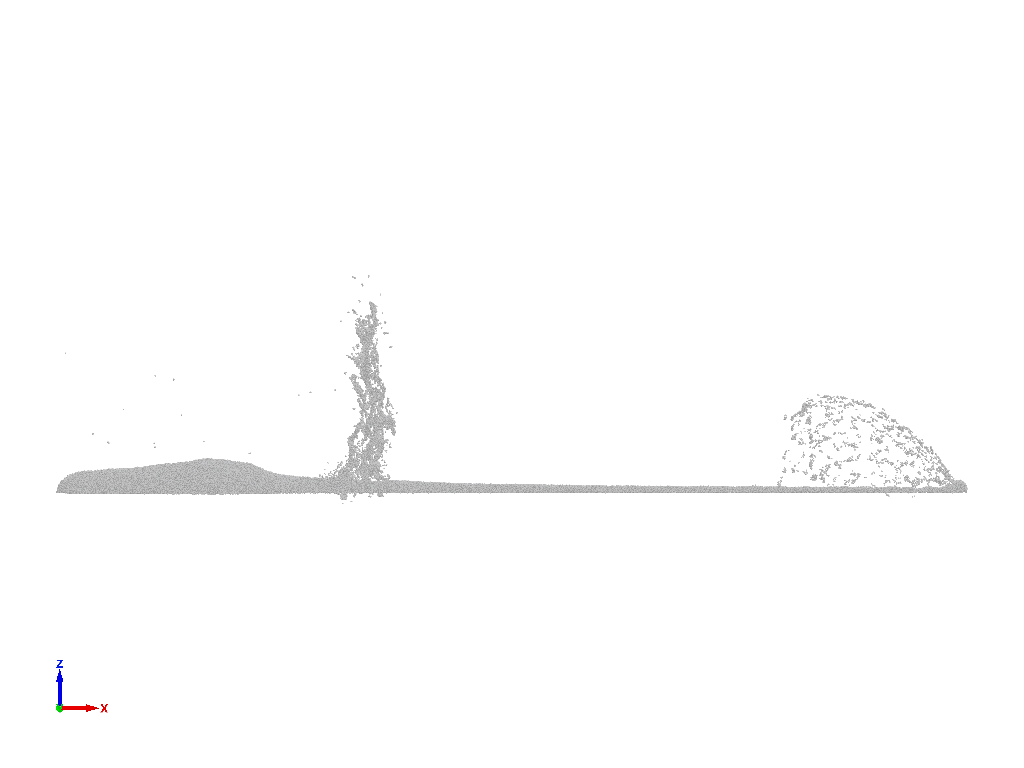

Figure 3. Shaped charge with half symmetry at final state.
SC_Quarter_symmetry

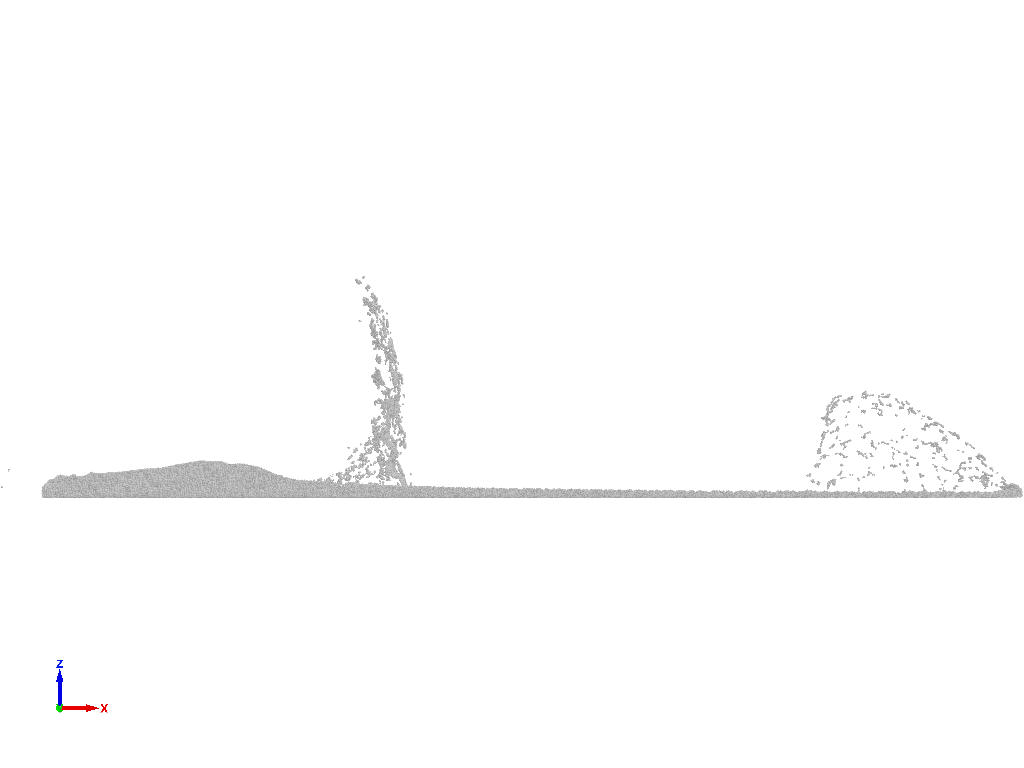

Figure 4. Shaped Charge with quarter symmetry at final state.
SC_tip_velocity

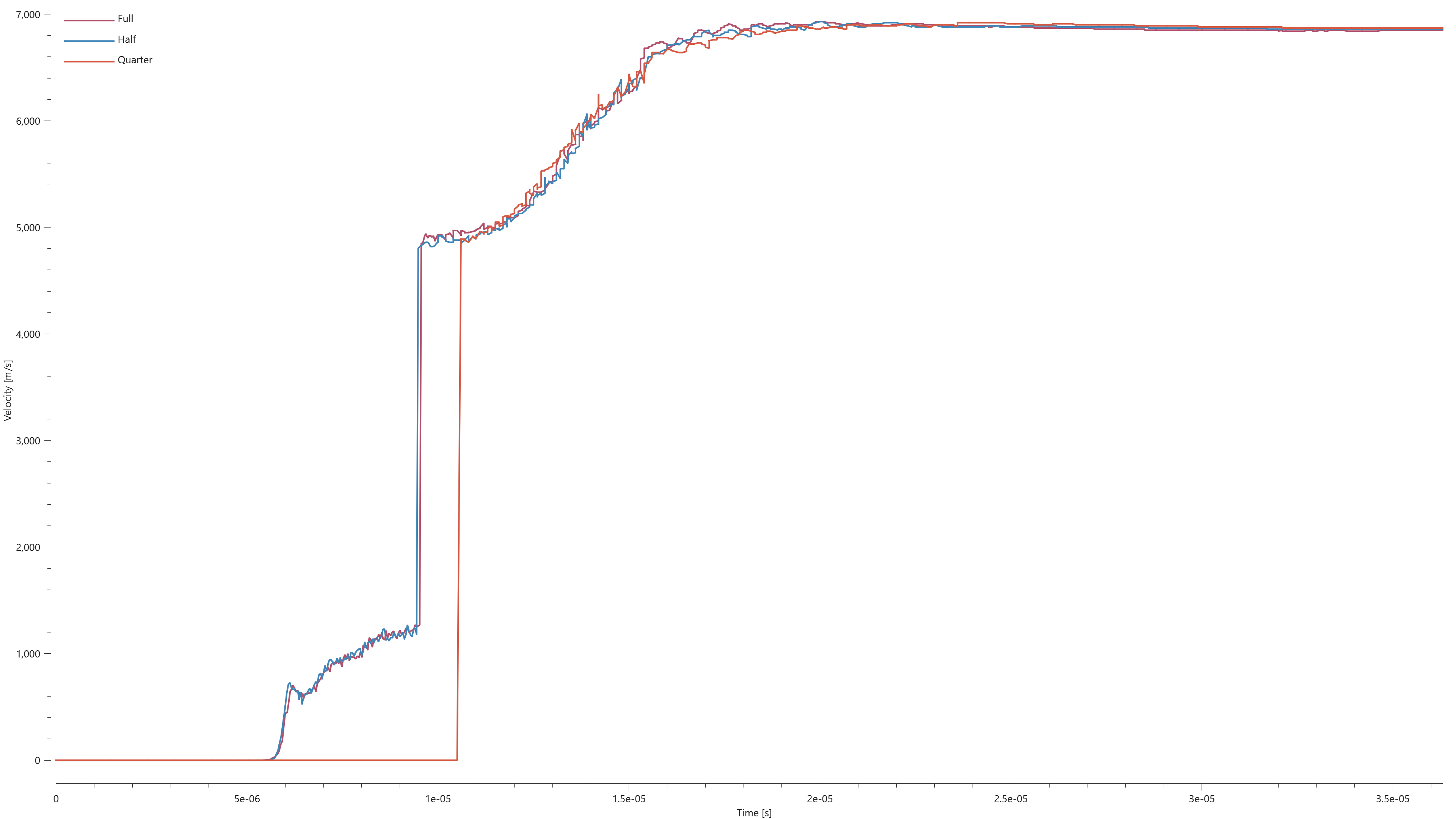

Figure 5. Tip velocity vs. time.

EFP

EFP_initiation

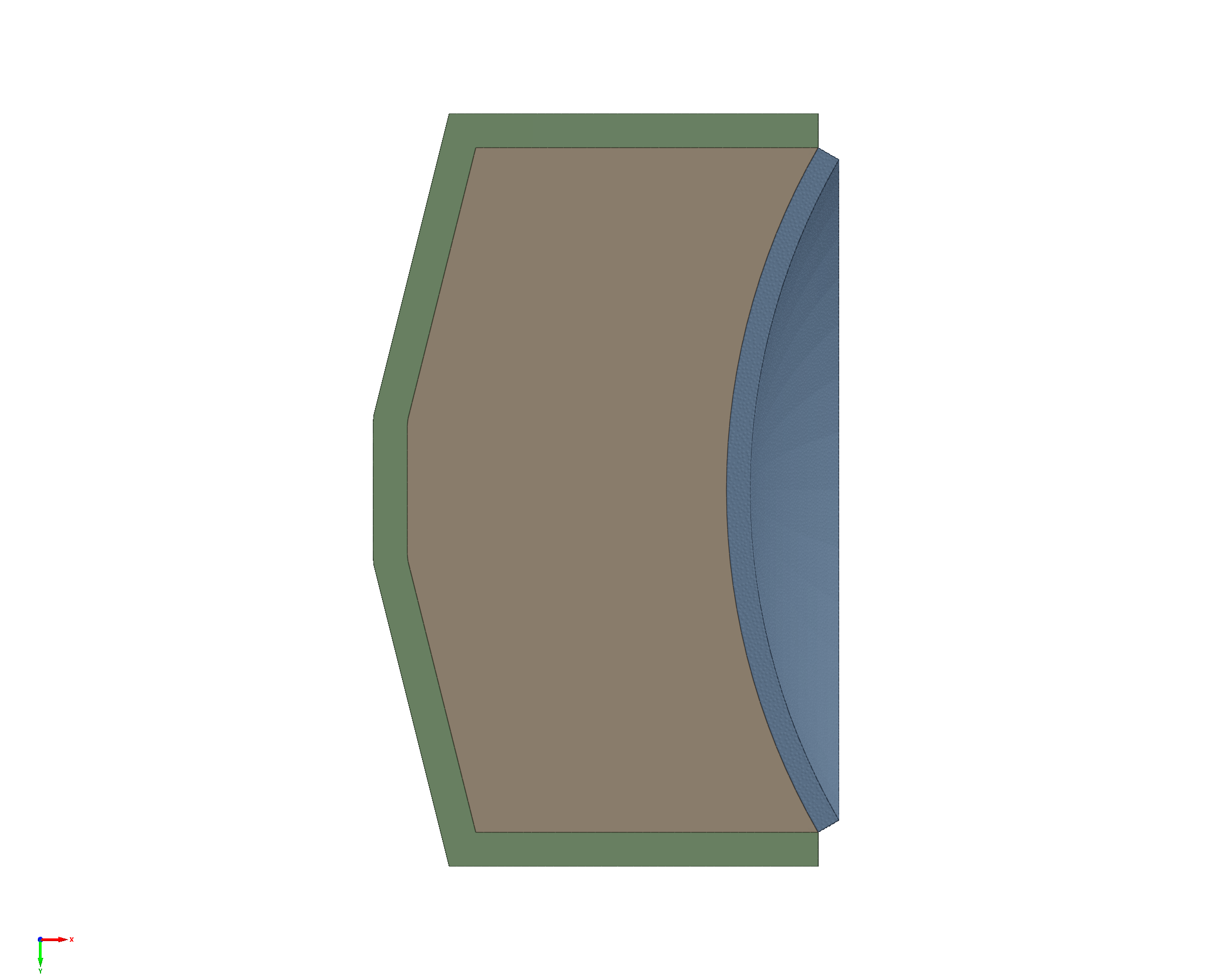

Figure 6. EFP at initiation, half symmetry.
EFP_Full_symmetry

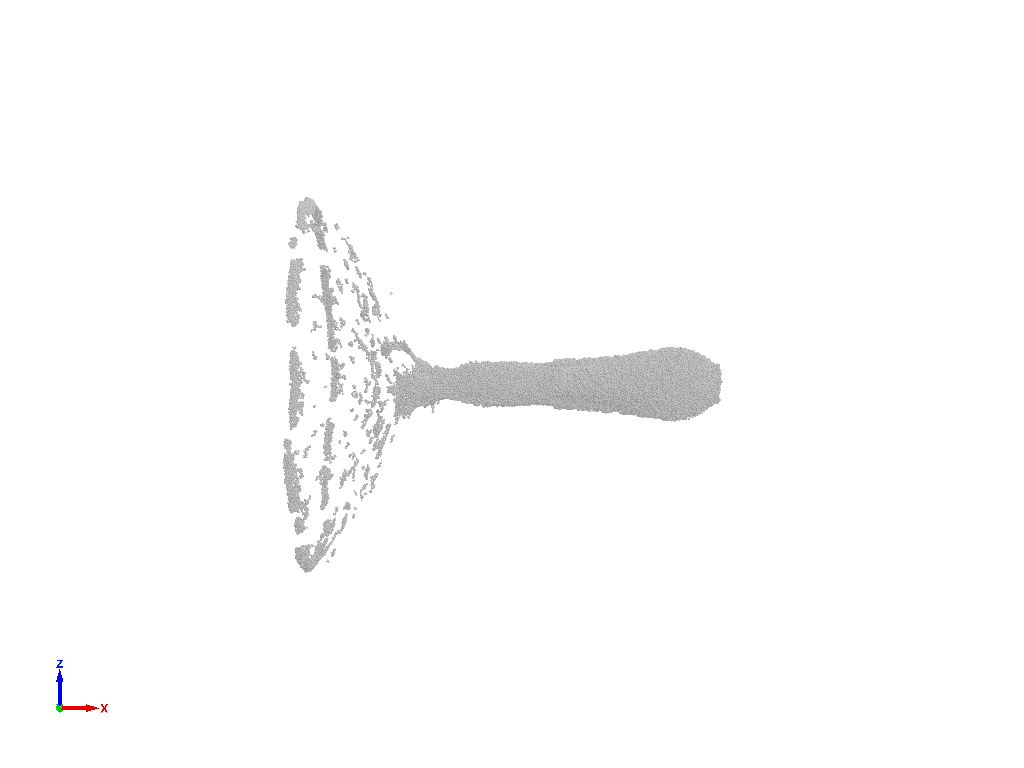

Figure 7. EFP with full symmetry at final state.
EFP_Half_symmetry

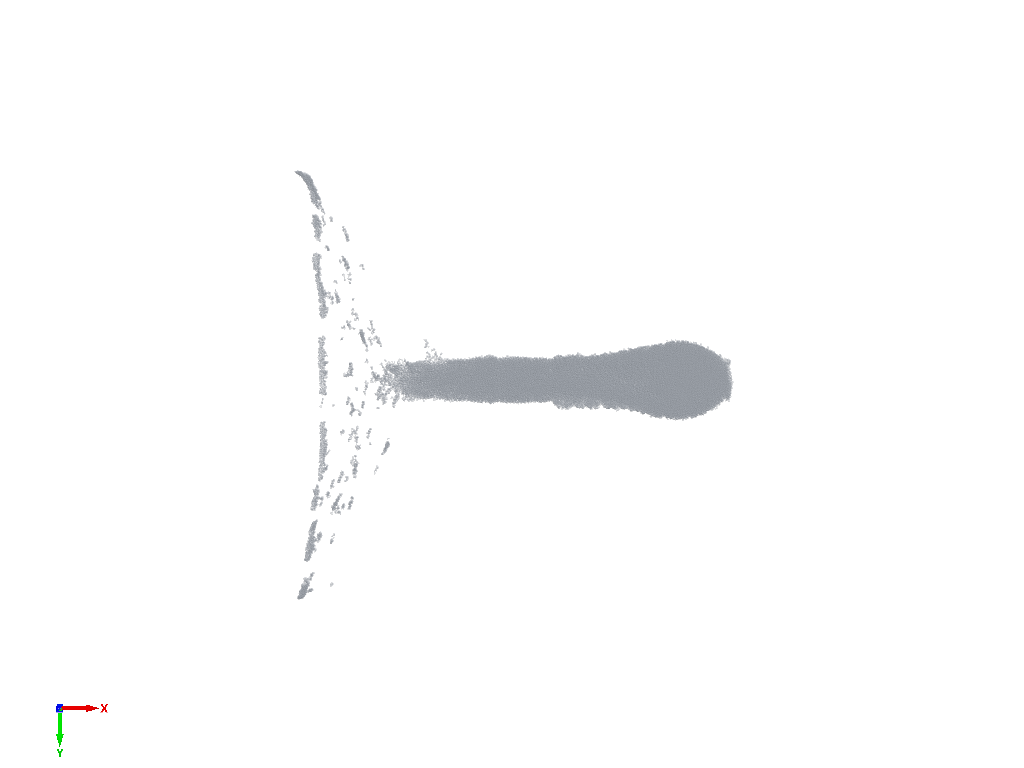

Figure 8. EFP with half symmetry at final state.
EFP_Quarter_symmetry

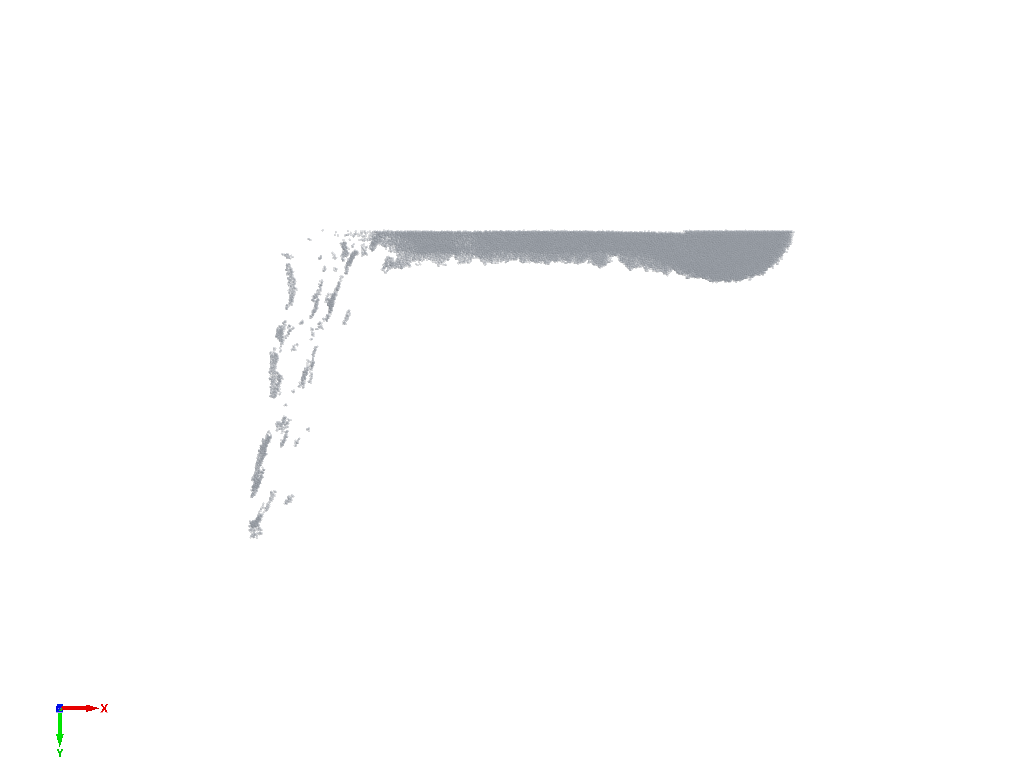

Figure 9. EFP with quarter symmetry at final state.
EFP_tip_velocity

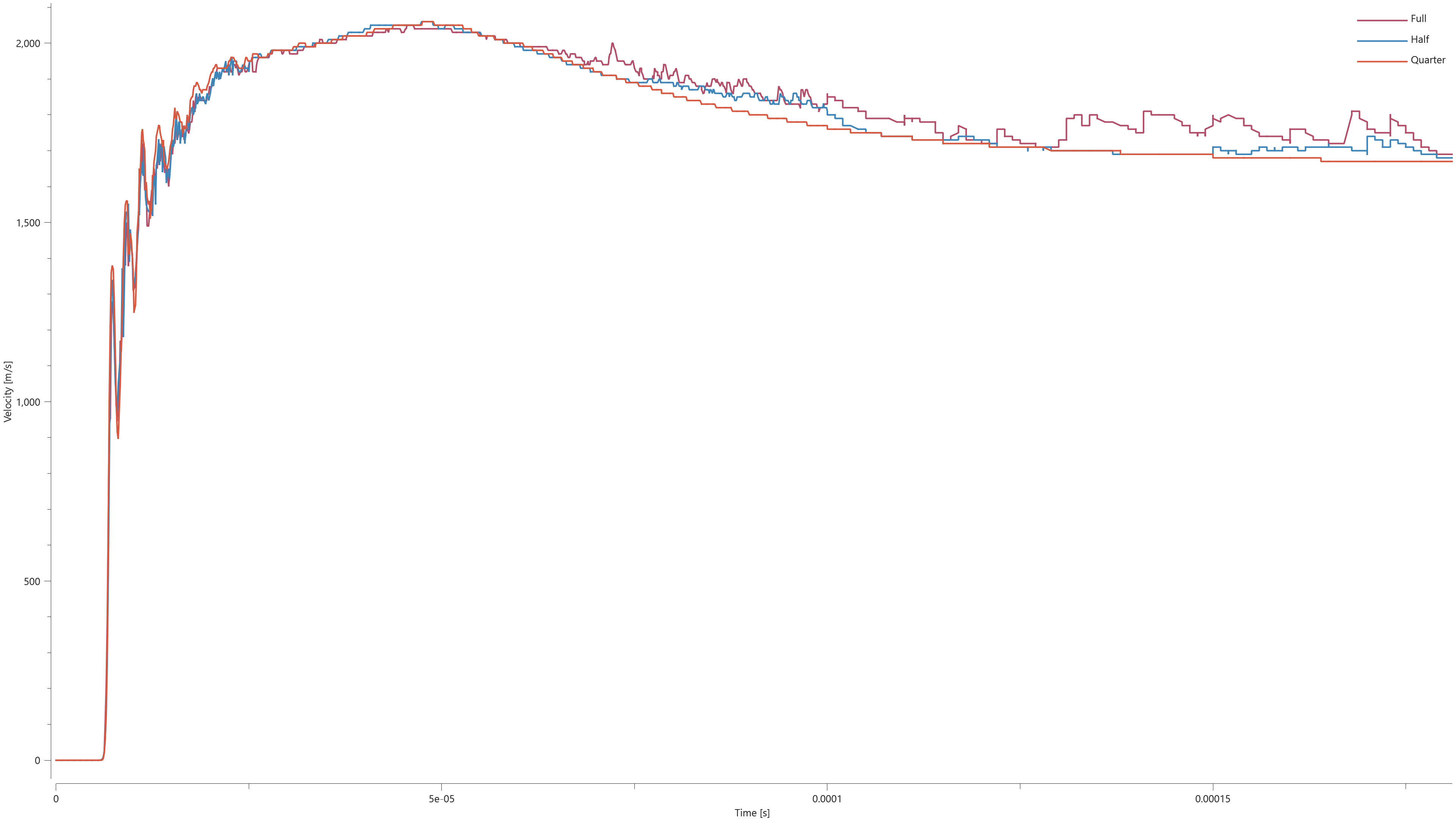

Figure 10. Tip velocity vs. time.

Relevant energy levels and jet tip velocities are checked for version control.




Tests

This benchmark is associated with 6 tests.
