GEOMETRY_SEED_NODE

Geometries

*GEOMETRY_SEED_NODE
"Optional title"
gid
nid${}_1$, nid${}_2$, $\alpha_c$

Parameter definition

Variable
Description
gid
Geometry identification number
nid${}_1$, nid${}_2$
Seed nodes
$\alpha_c$
Cut-off angle
default: $45^\circ$

Description

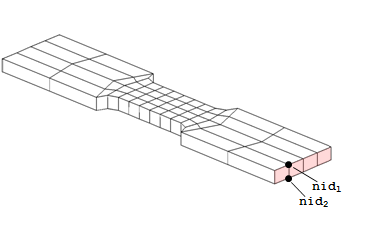

This command is used to define a surface from seed nodes with ID nid${}_1$ and nid${}_2$. nid${}_2$ only needs to be given if nid${}_1$ is located on an edge (see figure below). $\alpha_c$ is the angle between two faces that defines the boundary of the surface (default $\alpha_c = 45^\circ$).

seed_node
seed_node
